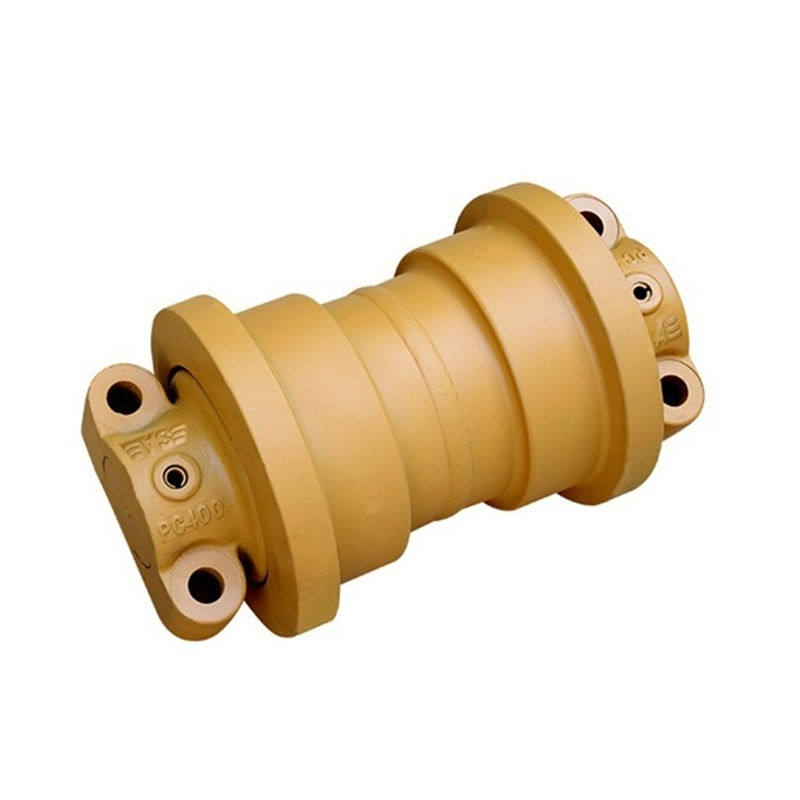

Excavator Bottom Roller Track Roller For E320; PC220-5

The materials avaliable for Track roller and Carrier roller are 40Mn2、40MnB、50Mn,depending on working conditions.The rollers are normalized with precision forging before overall heat treatment to achieve surface hardness or HRC52-6 and the depth of hardened layer reaches more than 7-10mm(HRC45).This ensures higher durability with high impact resistance and surface wear resistance on the contact surface of the roller.High quality floating saels and lubrcating system are usde to adapt to different climate and temperature The track and carrier rollers is able to work under severe working conditions or climate ranging from -45℃~120℃,keeping the components free from miantenance. Our Track Roller is welded before precision machining in vertical CNC turning lathe and hence,there is no concentricity errors.The process gives unparalleled quality quality advantage over that of precision machning before welding.Therefore,the operation of roller is be guaranteed against occurrence of rapid wearing problems,which significantly improves service life of the products.
send email to us

Products Details

Products Specification

Roller material 40Mn2 O-Ring Rubber
Side Cover QT450-10 Double Metal Set CuPb10Sn10
Shaft 45# Inside Hex Bolt JB/T1000-1977
Floating Seal 15CrNiMo3 Lubricated oil SAE85
Roller hardness HRC54-59，depth 2-3mm Shaft hardness HRC51°-56°H
Products-Specification

Note

We produce track roller for most of the excavatror and bulldozer brand and models. The Track roller also can be customized according to Customers' requirement. You need to offer us the drawing of the track roller for customized products. Following dimensions need to be checked when you order the track roller Note

Applicable Models

Brand Model
KOMATSU PC20-7、PC30、PC30-3、PC30-5、PC30-6、PC40-7、PC45、PC45-2、PC55、PC120-6、PC130、PC130-7、PC200、PC200-1、PC200-3、PC200-5、PC200-6、PC200-7、PC200-8、PC210-6、PC220-1、PC220-3、PC220-6、PC220-7、PC220-8、PC270-7、PC202B、PC220LC-6、PC220LC-8、PC240、PC300、PC300-3、PC300-5、PC300-6、PC300-7、PC300-7K、PC300LC-7、PC350-6/7、PC400、PC400-3、PC400-5、PC400-6、PC400LC-7、PC450-6、PC450-7、PC600、PC650、PC750、PC800、PC1100、PC1250、PC2000
D20、D31、D50、D60、D61、D61PX、D65A、D65P、D64P-12、D80、D85、D155、D275、D355
HITACHI EX40-1、EX40-2、EX55、EX60、EX60-2、EX60-3、EX60-5、EX70、EX75、EX100、EX110、EX120、EX120-1、EX120-2、EX120-3、EX120-5、EX130-1、EX200-1、EX200-2、EX200-3、EX200-5、EX220-3、EX220-5、EX270、EX300、EX300-1、EX300-2、EX300-3、EX300-5、EX300A、EX330、EX370、EX400-1、EX400-2、EX400-3、EX400-5、EX450、ZAX30、ZAX55、ZAX200、ZAX200-2、ZAX330、ZAX450-1、ZAX450-3、ZAX450-5、ZX110、ZX120、ZX200、ZX200-1、ZX200-3、ZX200-5、ZX200LC-3、ZX210、ZX210-3、ZX210-5、ZX225、ZX240、ZX250、ZX270、ZX300、ZX330、ZX350、ZX330C、ZX450、ZX50
CATERPILLER E200B、E200-5、E320D、E215、E320DL、E324D、E324DL、E329DL、E300L、E3205、E320、E320DL、E240、E120-1、E311、E312B、E312BL、E345、E324、E140、E300B、E330C、E120、E70、E322C、E322B、E325、E325L、E330、E450、CAT225、CAT312B、CAT315、CAT320、CAT320C、CAT320BL、CAT330、CAT322、CAT245、CAT325、CAT320L、CAT973
D3、D3C、D4、D4D、D4H、D5M、D5H、D6、D6D、D6M、D6R、D6T、D7、D7H、D7R、D8、D8N、D8R、D9R、D9N、D9G、D10
SUMITOMO SH120、SH120-3、SH200、SH210-5、SH220-3、SH220-5/7、SH290-3、SH350-5/7、SH220、SH280、SH290-7、SH260、SH300、SH300-3、SH300-5、SH350、SH60、SH430
KOBELCO SK120-6、SK120-5、SK210-8、SK210LC-8、SK220、SK220-1、SK220-3、SK220-5/6、SK200、SK200-3、SK200-6、SK200-8、SK200-5/6、SK60、SK290、SK100、SK230、SK250、SK250-8、SK260LC-8、SK300、SK300-2、SK300-4、SK310、SK320、SK330-8、SK330、SK350LC-8、SK235SR、SK450、SK480、SK30-6
DAEWOO DH200、DH220-3、DH220、DH220S、DH280-2、DH280-3、DH55、DH258、DH130、DH370、DH80、DH500、DH450、DH225
HYUNDAI R60-5、R60-7、R80-7、R200、R200-3、R210、R210-9、R210LC、R210LC-7、R225、R225-3、R225-7、R250、R2507、R290、R290LC、R290LC-7、R320、R360、R954
KATO HD512、HD1430、HD215III、HD820III、HD820R、HD1430III、HD700VII、HD1250VII、HD250SE、HD400SE、HD550SE、HD1880
DOOSAN DX225、DX225LCA、DX258、DX300、DX300LCA、DX420、DX430
VOLVO EC160C、EC160D、EC180B、EC180C、EC180D、EC210、EC210B、EC240B、EC290、EC290B、EC240、EC55、EC360、EC360B、EC380D、EC460、EC460B、EC460C、EC700、EC140、EC140B、EC160B

 Storage

Storage1 Storage2 Storage3
